Mikron5

Sound Quality

The Mikron5 has great sound quality, effectively preventing the misidentification of non-leak noise sources as leaks. By delivering crystal-clear audio feedback, the Mikron5 allows operators to distinguish between actual leak sounds and background/usage noise, thereby reducing false positives.

GPS Locations Visible

The latest version provides precise GPS location tracking, ensuring that each final position of the leak mark and sound recording at that point is accurately mapped. This feature allows operators to see exact locations of detected leaks, making it easier to plan and execute repairs. Additionally, actual excavation locations can be uploaded and stored on the Atrium platform, ensuring comprehensive documentation and easy access to historical data.

Bluetooth Connectivity

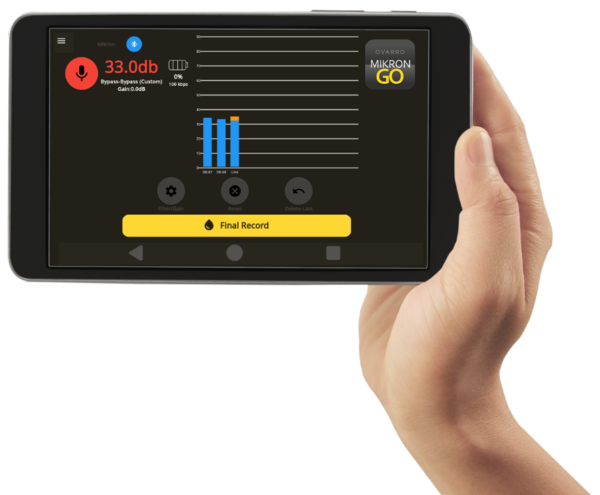

The Mikron5 features low-energy Bluetooth connectivity, enabling seamless visualisation of current and minimum dB values on a tablet display. This wireless connection enhances usability and mobility during leak detection, allowing operators to move freely without being tethered to the device. Bluetooth integration ensures real-time data streaming, improving the efficiency and accuracy of pinpointing leaks.

Comprehensive Data Upload and Traceability

The Mikron solution allows for the upload of both ground microphone location and sound file to the web-based Atrium platform. By reviewing and analyzing these uploaded data sets, supervisors can assess the accuracy of leak detection efforts, identify any incorrect excavations, and ensure compliance with best practices.

SENSOR SPECIFICATION

Sensor type

Ceramic piezoelectric within windproofrubber housing

Sensitivity

20V/g

Frequency response

10-5000 Hz

WIRELESS COMMUNICATIONS

Type

Bluetooth LE

Operating Frequency

2.4GHz (ISM band)

Output Power

9.93dBm / 9.84mW

Wireless operating Range

≤6 meters

POWER

Type

Battery Pack - Nickel Metal Hydride (rechargeable)

Operating Life

≥10 hours continuous use from full charge

Recharge Time

Approx. 5 hours (temperature dependent)

ENVIRONMENTAL

Operating Temperature

-10˚C to +50˚C

Charging Temperature

0˚C to +45˚C

Maximum Humidity

90%

Water ingress protection

IP65

DIMENSIONS / WEIGHT

Case

170 x 180mm diameter / 1.85kg (without handle)

BATTERY CHARGER

Transport Case

Ruggedized with in-case battery charging

Mains charger

110/240 Vac 50/60Hz

Vehicle charge

12 Vdc

PROCESSOR SPECIFICATION - APP

Operation

Audio Listening with minimum noise display and filter control

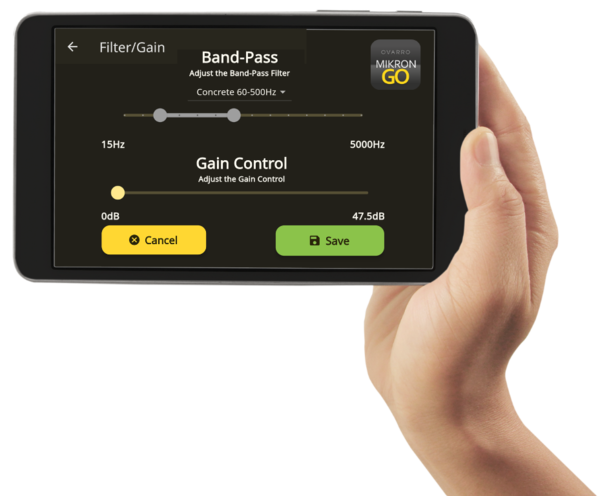

FILTERS

Metal

75-2000 Hz

Concreate

75-1000Hz

Plastic

60-500Hz

Wideband

30-5000Hz

DISPLAY

Type

As per tablet/mobile

Display of leak noise

Minimum and current Histogram

GPS position feature

Yes

Future Expansion

INTERNAL MEMORY

Device

As per Device

Already have a partner account?

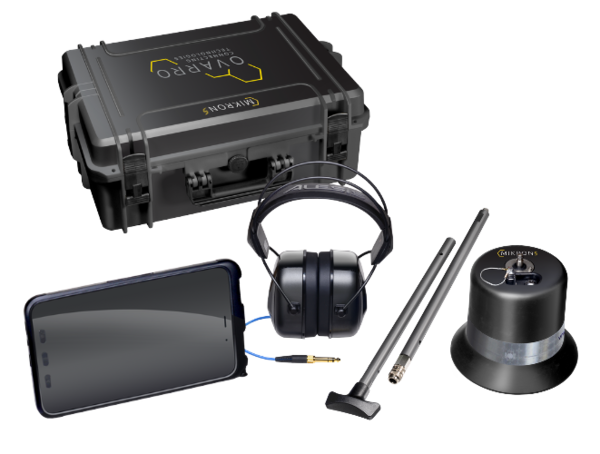

Advanced Bluetooth-enabled, portable acoustic microphone with integrated GPS and data upload capabilities to the Atrium platform, ensuring precise and efficient pinpointing of water leaks in pressurized water mains

ACCURATE ON SITE LEAK LOCATION
